Change View Panel



This panel give the user the change to move the camera focusing the robot in the world to some useful predefined positions: top view of the world (Z+), view from the left (Y+), front view (X+),....

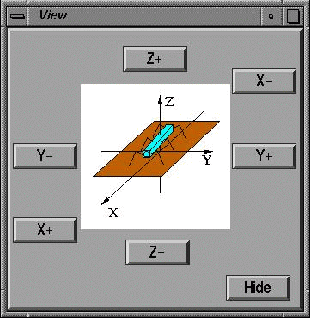

Figure 2.15: The change view sub-panel.
\begin{figure}
\centerline{
\includegraphics [scale=0.6]{images/view.eps}
}\end{figure}
