SmartBird Directory Reference

Detailed Description

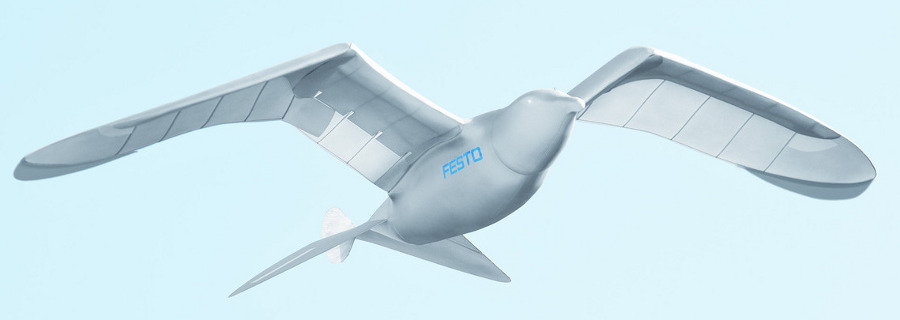

A planar mechanism used in the wing of the Smart Bird.

The dimensions of the mechanism are approximated and taken from this video.

This example can be processed as follows:

  • Generate the equations: Execute
  • Solve the positional analysis problem: Execute (this takes about half a minute)
  • Sort the solutions:
  • Visualize the solutions: This example has 8 different connected components and only one of them corresponds to the correct wing movement.
  • Visualize the configuration space: In the plot some of the connected compnents seems to intersect, but this is just an artifact of the projection
    • bin/cuikplot3d examples/SmartBird/SmartBird 9 21 37 0 sb.gcl
    • geomview sb.gcl

Files

file  SmartBird.world [code]
 A planar mechanism modelling a wing.
